SF-Rehabilitation Equipment

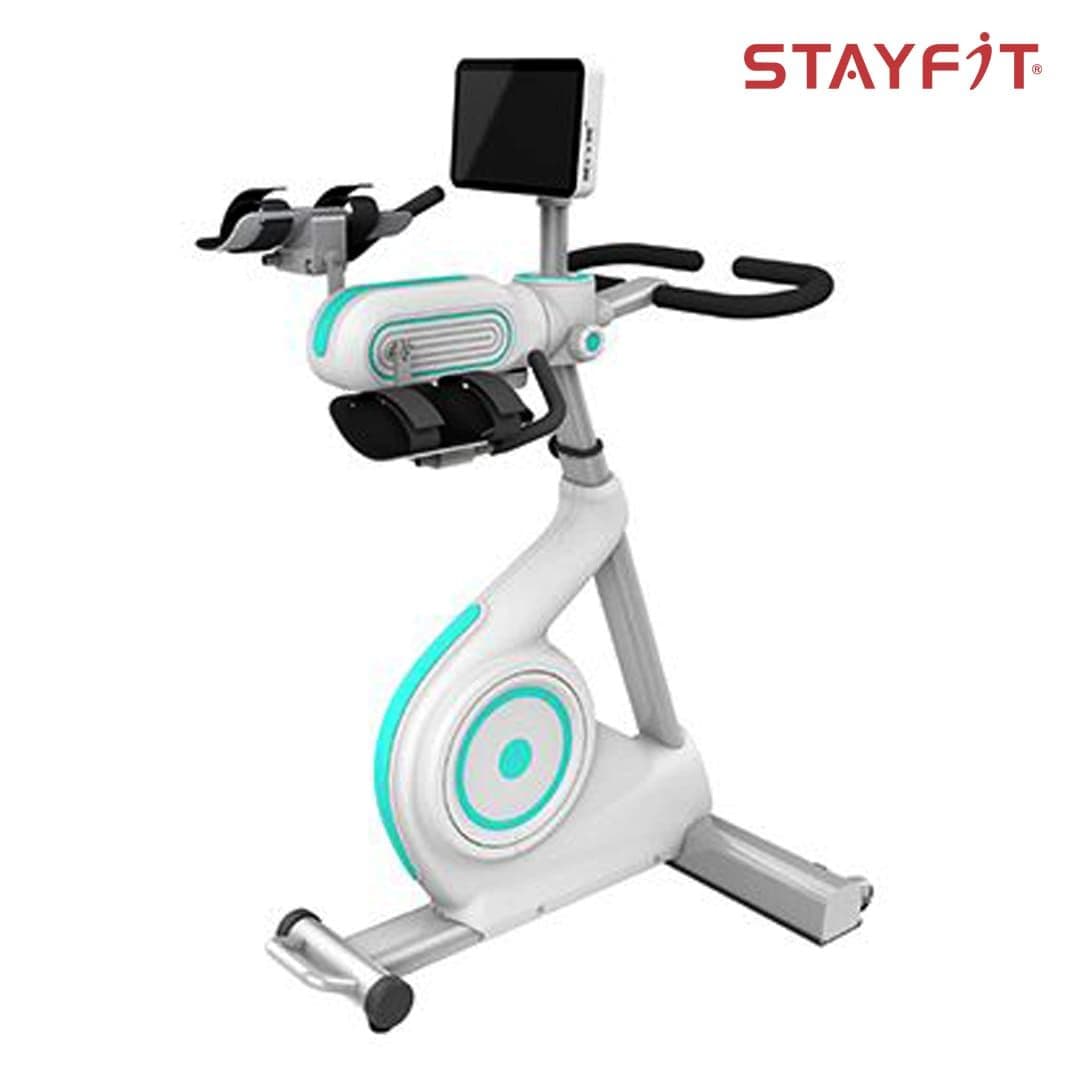

1.Item No.:QD-YG-101 2.Name:Intelligent active and passive upper and lower limbs rehabilitation trainer(adult) 3.Machine size :1090*700*1142mm 4.Machine weight:41Kg 5.Material:Carbon structural steel 6.Upper limb training speed ( r/min):0-60r 7.Lower limb training speed( r/min):0-60r 8.Training time ( min) ?1-60 min 9.Reversing time ?s):5?10?15?20?40?60 10.Resistance to motion:0-20N.M Total 20 grades. Min grade is 1 and the max grade is 20, resistance increases or decreases by each grade. 10.Spasm Grade:High,middle, low 11.Torque range of upper limb crank(N.m): 0-9.2 12.Torque range of Lower limb crank(N.m):0-16 13.Adjustment range of upper limb on height (N.m):0-240 14.Input power /VA:200 ?+15% 15.Fuse protector:F2AL250V
